Nacelle wind lidar

Measures wind conditions ahead of a turbine hub using configurable range gates.

Request a configuration View English guide

Technical overview

Choose the configuration for your project.

ZC-JGL-002 technical overview
Model	ZC-JGL-002
Measurement distance	50–400 m
Range gates	10, configurable
Sampling frequency	4 Hz

Ranges and interfaces refer to the described instrument configuration. Confirm selected sensors, power, mounting and supplied accessories in the quotation.

Documentation

English product guide

Technical extract from the English documentation; configuration options are identified in the guide.

English · PDF · 3 pages · 1.2 MB

View guide Download PDF ↓

Configuration view

Equipment and installation layout

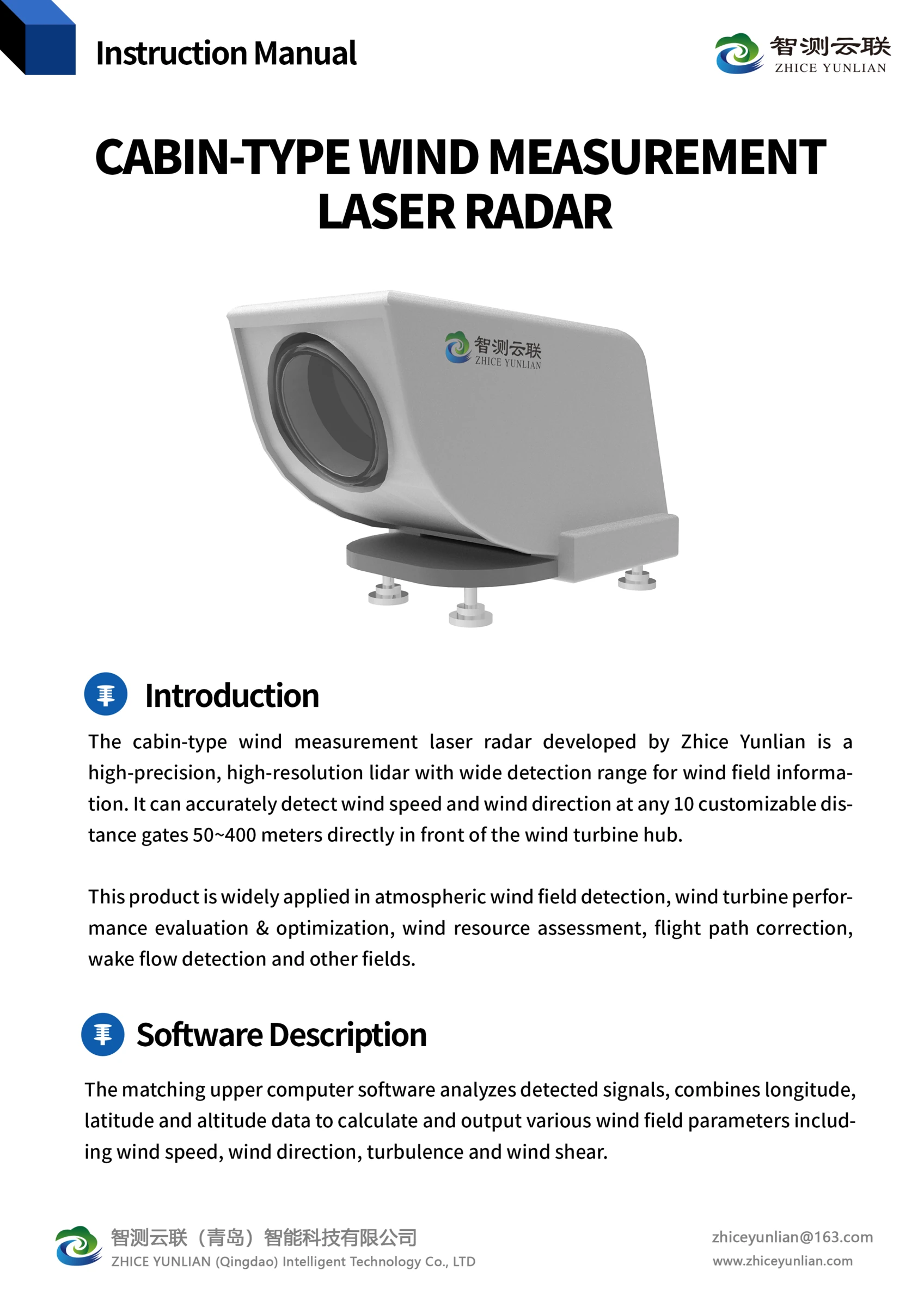

Nacelle wind lidar equipment illustration from the English guide — Complete illustrated page from the English product guide. Configuration and supplied equipment depend on the selected order.

Connect the equipment to your project.

Tell us what needs to be measured, where the instrument will be installed and which system receives the data.

Prepare the technical requirement →
