ZHICE YUNLIAN Environmental monitoring
Laser snow depth monitoring station — configuration illustration
Product rendering supplied by Zhice Yunlian. Final configuration and supplied equipment are confirmed in the quotation.

Atmospheric instruments

ZC-XSC-004

Laser snow depth monitoring station

Uses non-contact laser ranging with a weather sensor and data terminal for remote snow-depth observation.

Request a configurationView English guide

Technical overview

Choose the configuration for your project.

ModelZC-XSC-004
Snow-depth range5–2500 mm
Resolution1 mm
Sensor interfaceRS485 Modbus

Ranges and interfaces refer to the described instrument configuration. Confirm selected sensors, power, mounting and supplied accessories in the quotation.

Documentation

English product guide

Technical extract from the English documentation; configuration options are identified in the guide.

English · PDF · 4 pages · 1.6 MB

View guideDownload PDF ↓

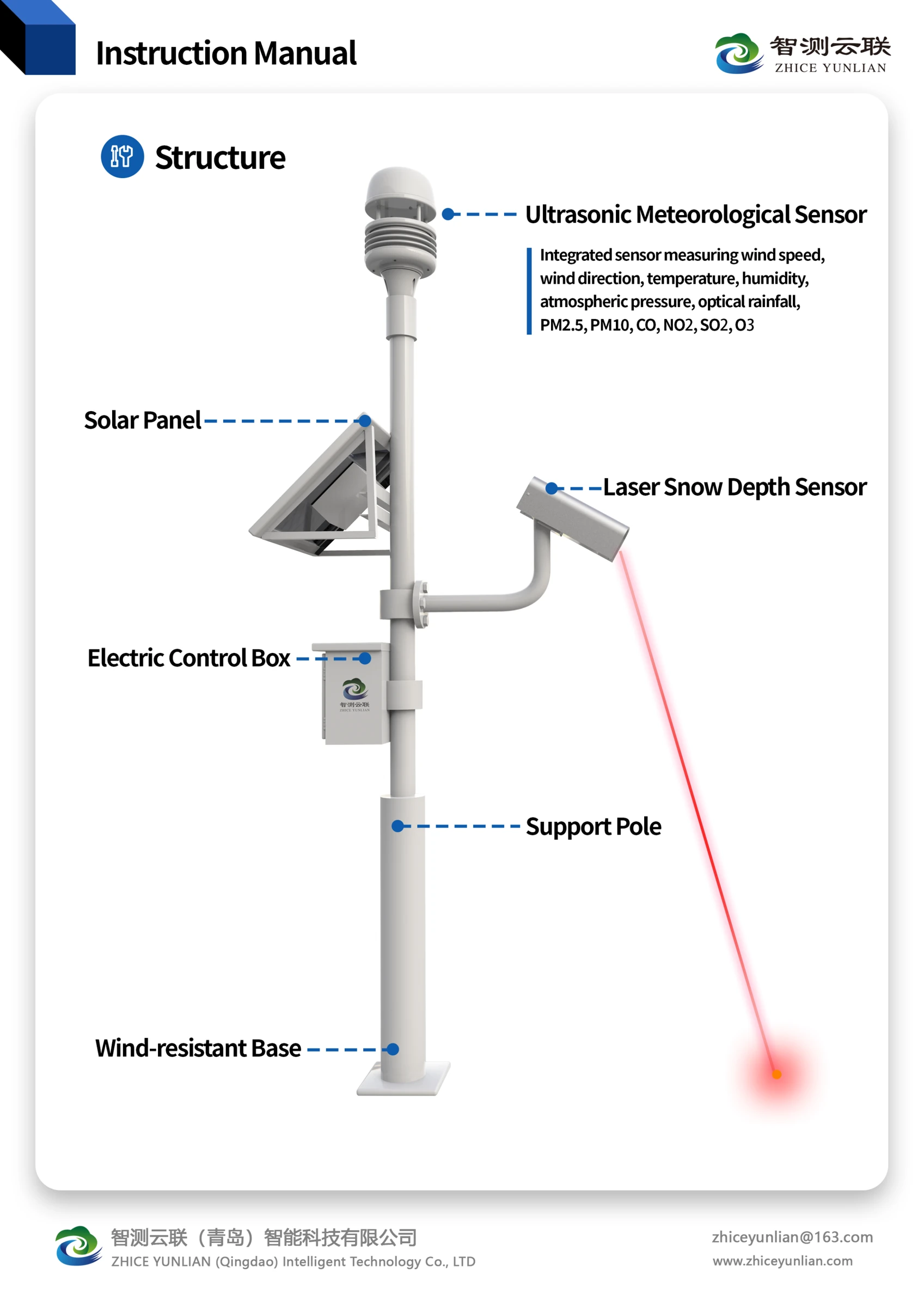

Configuration view

Equipment and installation layout

Laser snow depth monitoring station equipment illustration from the English guideView full illustration ↗
Complete illustrated page from the English product guide. Configuration and supplied equipment depend on the selected order.

Connect the equipment to your project.

Tell us what needs to be measured, where the instrument will be installed and which system receives the data.

Prepare the technical requirement →
