Laser ceilometer

Uses atmospheric backscatter measurements to identify cloud-base height and cloud layers.

Request a configuration View English guide

Technical overview

Choose the configuration for your project.

ZC-CLY-004 technical overview
Model	ZC-CLY-004
Cloud-base range	15–12000 m
Range resolution	5 m
Communication	RS485 or RS232

Ranges and interfaces refer to the described instrument configuration. Confirm selected sensors, power, mounting and supplied accessories in the quotation.

Documentation

English product guide

Technical extract from the English documentation; configuration options are identified in the guide.

English · PDF · 3 pages · 1.3 MB

View guide Download PDF ↓

Configuration view

Equipment and installation layout

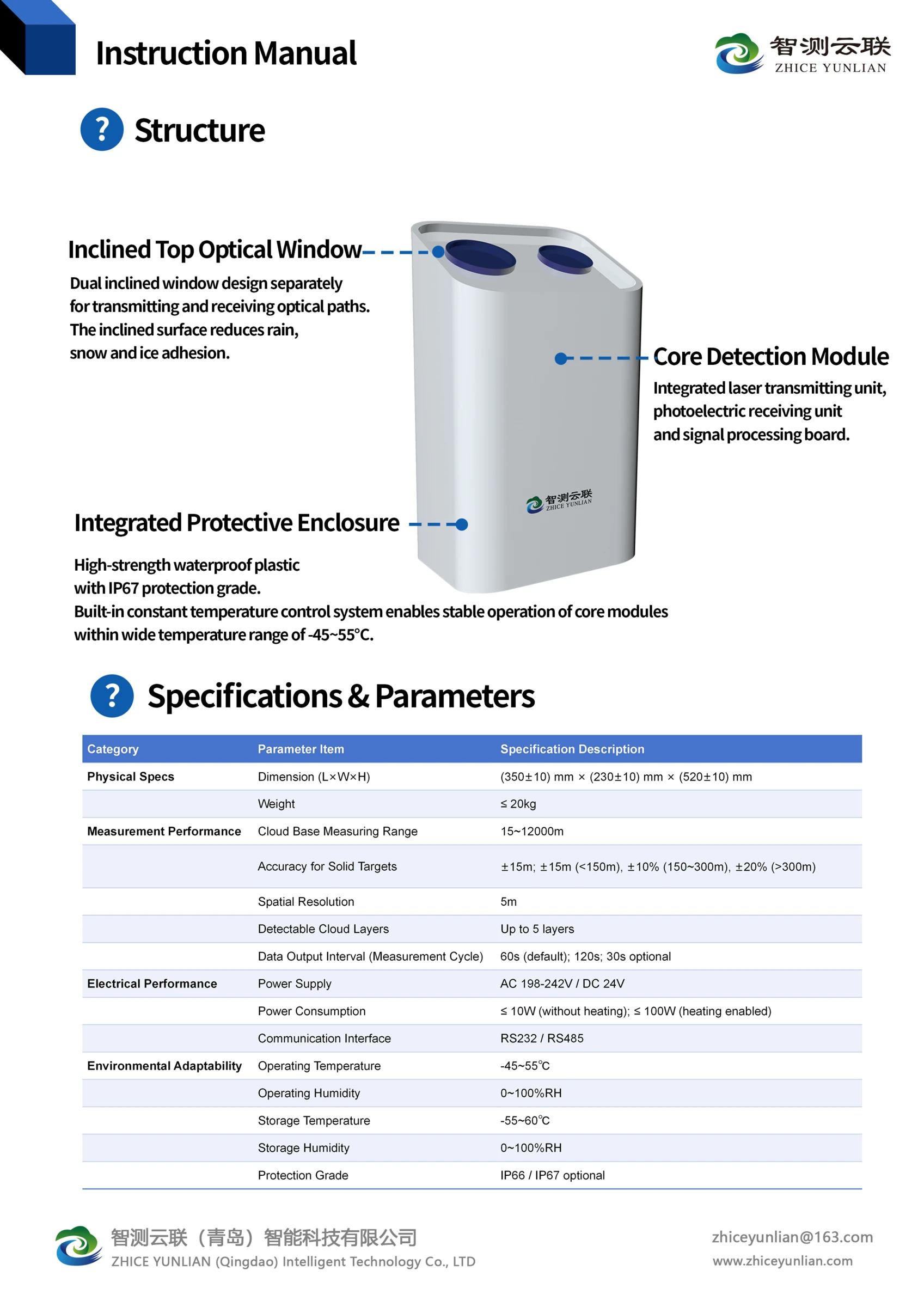

Laser ceilometer equipment illustration from the English guide — Complete illustrated page from the English product guide. Configuration and supplied equipment depend on the selected order.

Connect the equipment to your project.

Tell us what needs to be measured, where the instrument will be installed and which system receives the data.

Prepare the technical requirement →
